How To Blend 9 Projectors Into 1 Single Image? Is It Possible?

Most professionals who create immersive displays or large video walls tend to ask the question about How To Blend 9 Projectors Into 1 Single Image? Essentially, the total process involves projector edge blending, alignment, and synchronization to render a seamless visual output across the projectors.

How To Blend 9 Projectors Into 1 Single Image? Is It Possible?

Yes, it is possible, use edge blending software, careful calibration, and hardware such as a multi-output graphics card or video wall controller that allow people to blend 9 projectors into 1 single image.

Steps To Blend 9 Projectors Into 1 Image

1. Find projectors arranged with 10-20% overlap for blending zones (3×3 grid e.g.).
2. Physically place projectors with guaranteed high-precision alignment through adjustable rig configuration.
3. Queue content into projectors via a powerful GPU or video wall processor such as Datapath Fx4.
4. Pick the extended desktop mode to match canvas sizing (check something like 5760×3240 for 3×3 at 1080p).
5. Use the WATCHOUT/Resolume/TouchDesigner route to assign content and control geometry.
6. Calibration of overlap zones using blending curves to achieve smooth transitions.
7. Manual for matching brightness and color, or via any auto-calibration systems available- if in place.
8. Play a looping video on the surface; tweak the warping/blending accordingly to get an ideal output.
9. Save all software settings and physically document the setup layout.

Can I Connect Multiple Projectors To Make One Big Picture?

Yes, you can connect multiple projectors to make 1 large image. To connect projectors or creating one large single image requires edge blending, careful alignment, and calibration. This means that the images from different projectors can overlap slightly and blend seamlessly, forming a single, cohesive image with no clear divide or gap.

Other applications include auditoriums, large-scale presentations, museums, immersive experiences, and virtual simulation environments where one projector would not suffice to cover the entire desired screen area. Hence, the perfect hardware and software complement to connect multiple projectors into one powerful visual system.

How Do I Configure Multiple Projectors To Project A Single Blended Image?

1. Use projectors with edge blending capability or add-on software.
2. Calibrate brightness and color consistency.
3. Align each projector using markers and geometric correction.
4. Use a video wall processor or a PC with multiple outputs.
5. Apply overlap and blend zones for smooth transitions.

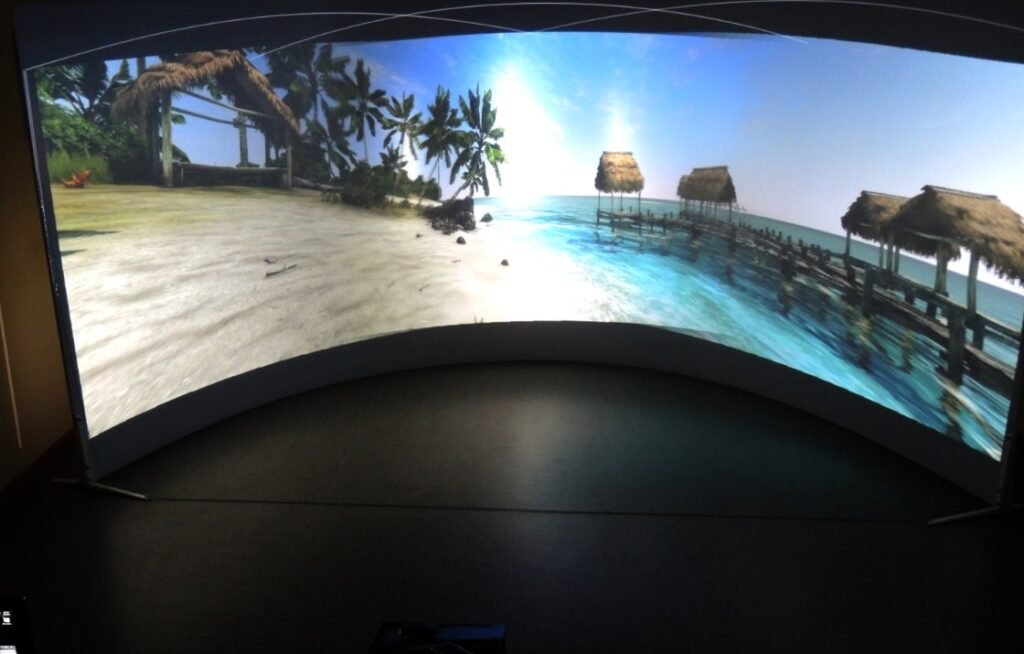

Making Two Projectors Look Like One Image – Is It Even Possible?

Yes, a couple of projectors can create a single continuous image. This is achieved by combining a lot of keystone correction, alignment tools, and edge blending software. Keystone correction changes the projection angle distortion, alignment tools ensure high accuracy in matching the projected images, and the edges in the overlapping areas of projections are blended to make the lines appear smooth.

If done right, all of this will give an impression to the audience that is produced through one continuous image and not projected by two separate projectors. It will be particularly useful for wider screens or panoramic displays that usually do not suffice with a single projector.

How Do I Combine Two Projectors?

To combine two projectors:

• Overlap the projections a little
• Edge blending with either Warping & Blending tools
• Connect to a dual-output graphics card or splitter

Can You Combine Four Projectors Into A Single Screen?

It is possible to combine 4 projectors. Here’s what you need:

• A video processor or graphics card with 4 outputs
• Same luminance for all projectors.
• Precise geometry correction and blending for a seamless image

How to Sync Up Multiple Projectors?

• All projectors must be synchronized to the same timing signal for frames to display at the same time to avoid visual lag or tearing.
• Playback timing can be controlled in all projectors using a single control interface with synchronization software such as Watchout, Resolume, or Dataton.
• All projectors must be at the same refresh rate (for example, 60Hz) and have the same resolution to avoid any differentials in viewing.
• Feed all the projectors from only one media player or maybe a video wall processor, so they have the same timing and playback as well.
• Make use of professional hardware or software tools for monitoring and tuning timing between outputs, ensuring smooth and perfect synchronization for a unified display.

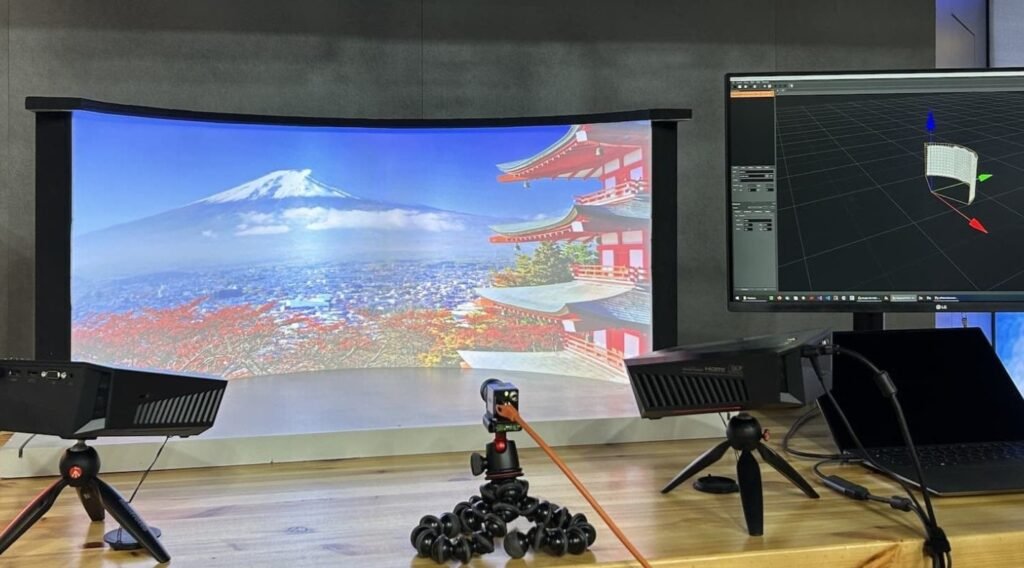

Can You Connect Multiple Projectors to One Computer?

Yes, it is indeed possible to connect multiple projectors to one computer and there are many options regarding how to go about it, depending on your configuration and what you want to achieve.

Multi-output Graphics Cards (GPU)

Modern power graphics cards can support one-to-many video output, making it easy to connect several projectors to a single computer. This is the most time-saving choice for high-end applications, like video walls or immersive displays.

Display Splitters or MST Hubs

Duplicating or extending a signal from one port to multiple displays is performed with the use of display splitters or MST hubs. While splitters allow you to mirror the same contents across your projectors, they offer little for a single large image, since they cannot completely address independent control of each output.

Media Server Software (Watchout, Resolume, Dataton)

All professional media server systems provide enhanced process features like mapping, synchronization, edge blending, and control of content, enabling a single computer to perform multiple outputs with projectors. They generally work well with large events and installations.

USB-to-HDMI Adapters (for simpler scenarios)

With USB display adapters, one can add display output without spending too much money, but they may offer limited functionality and should not be expected to deliver perfect performance.

What Is Projector Edge Blending?

Projector edge blending is the technology that is used to merge two or more projections into one single continuous image. The edges of the projected images are overlapped and blended or faded into one another by specialized software or hardware.

The seams or hard edges where the two projections meet should not be seen, thus resulting in a smooth image as if the images were from one large screen.

Edge blending is essential when even a single projector would not suffice to cover the desired display area; it encompasses large venues, immersive environments, curved screens, or wide panoramic displays.

All these necessitate proper calibration of brightness, color, and geometry to ensure that all images can match perfectly, and thus transitions will be invisible to the audience.

How to Create a Video Wall from One Laptop with 4 Projectors?

1. Use a laptop with a multi-display capable GPU (or external GPU).
2. Connect via HDMI/DisplayPort splitters or docking stations.
3. Use video wall software to map and blend the output.
4. Align and calibrate using projection mapping tools.

Conclusion

To conclude, how do you put 9 projectors together into 1 projection? You will need edge bending software, some video wall processors, and a ton of calibration, and you’ll end up with a spectacular unified projection. This is feasible using only 2 projectors or up to 9 projectors hooked together into a singular seamless display with new technologies that have become available.
