NZXT CAM And Ryzen Master Showing Different CPU Temps – Why?

Have you ever encountered NZXT CAM And Ryzen Master Showing Different CPU Temps? While you are analyzing the performance of your PC, the NZXT CAM and Ryzen Master might show different temperature readings for the CPU, and sometimes the variance might be huge.

It can be very confusing when one app shows a temperature much higher than the other. What, then, is causing this divergence? The answer lies in each software’s way of reading the CPU temperature data and from which thermal sensor it pulls that data.

Understanding how temperature monitoring works across NZXT CAM, Ryzen Master, and other utilities such as HWiNFO64 is important to all enthusiasts, over clockers, and anyone trying to keep their systems cool and healthy.

NZXT CAM And Ryzen Master Showing Different CPU Temps – Why?

For the simple reason that Ryzen Master and NZXT CAM employ different sensors and methods, they display different CPU temps. Ryzen Master takes core temperatures as calibrated by AMD; NZXT CAM typically reports the CPU package or hotspot temperature, which usually ends up being higher.

Why Is NZXT CAM Showing Much Higher CPU Temps Than Ryzen Master?

NZXT CAM reads higher CPU temperatures generally because of its sensor. It does draw the following:

• NZXT CAM usually takes readings from the CPU package sensor, which is the source of all heat dissipated from all cores and integrated peripherals.
• For true reading of core heats, TDIE or TCTL will be measured.
• Some lines of Ryzen CPUs, particularly in the newest generation, include a +10°C offset on some sensors (for example, TCTL), which makes reading very variable from the applications used in measuring them.

So, those are the various reasons why one can say that if all users are seeing an increase in CPU temps in NZXT CAM, it is mostly related to reading the hottest active sensor instead of an average for comparison purposes.

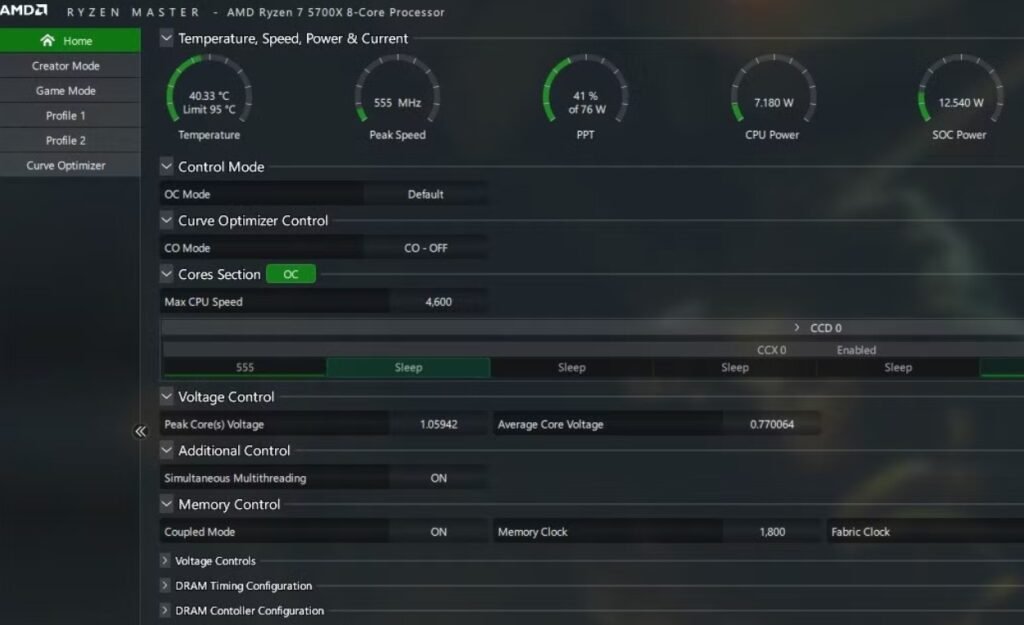

How to Normalize CAM Temp Readings with Ryzen Master?

Although direct customization of temperature sensors is not within the disposition of NZXT CAM, there is still a way to make its readings correspond to those of Ryzen Master in the following steps:

Cross-reference using HWiNFO64

• First, grab HWiNFO64 and run it.
• Then identify what sensor is used by NZXT CAM for readings (usually “CPU Package” or “CPU (Tctl)”).

Adjust Expectations or Add an Offset

• If CAM reads +10 degrees above Ryzen Master, expect that temperature and know that your CPU has a known thermal offset.
• When analyzing the temperatures from CAM, learn to account for it.

Software Update

• Always make sure to have up-to-date versions of NZXT CAM, Ryzen Master, and chipset drivers for accurate readings.

How to Fix Wrong Temperature or Clock Speed Readings?

Outdated software or sensor conflict usually causes inaccuracies in readings in CAM or Ryzen Master.

Solutions

1. Update BIOS and AMD Chipset Drivers – This usually solves bugs from sensor interpretation.
2. Close Conflicting Monitoring Tools- Tools like CAM, HWMonitor, and AIDA64 should not run concurrently because they may conflict.
3. Restore Ryzen Master to Default- this clears any misconfigurations of clocks and temps.
4. Check Bugs on CAM- It misreports CPU frequencies at times. The issue may be resolved by restarting or reinstalling the application.

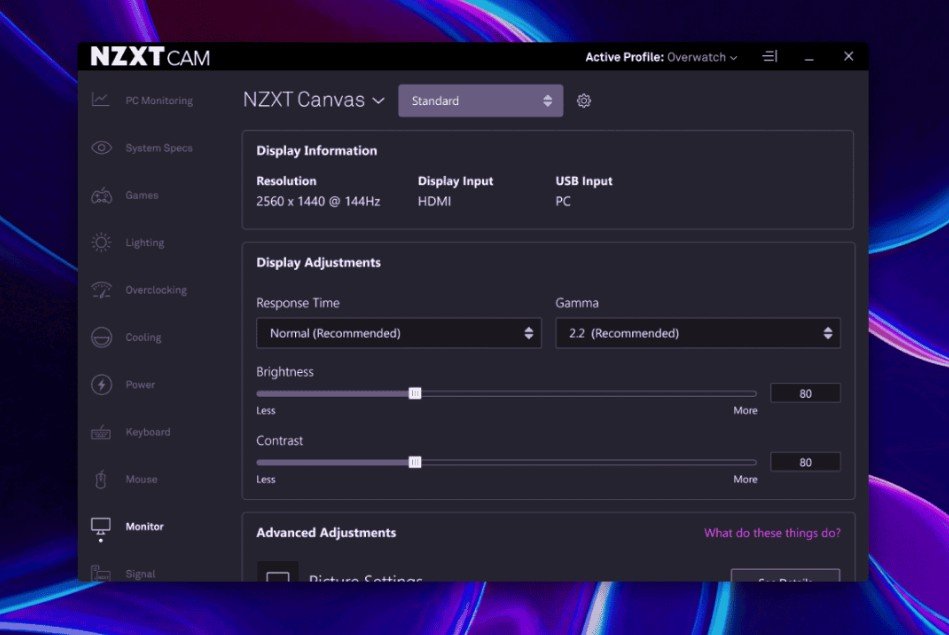

How To Change What NZXT CAM Runs Off Of For CPU Temps?

Currently, NZXT CAM does not provide a way for users to switch temperature sources (from Tctl to Tdie) on the CPU.

Workarounds

• Create a HWiNFO64 or Ryzen Master as the primary monitoring tool.
• Send feature requests to NZXT through their support forums or feedback forms.
• Use custom third-party overlays (eg Rainmeter + HWiNFO plugin) if you want very accurate real-time temps from a specific sensor.

Ryzen Master Vs HWiNFO64 Vs NZXT CAM Show 3 Different CPU Temps – Why?

Each application reads different temperature measures from the thermal CPU sensors:

1. Ryzen Master: The most accurate for Ryzen; it reads core temp.
2. HWiNFO64: It reads everything (core/package/CCD, etc.);
3. NZXT CAM: This usually measures the hottest sensor or package temperature.

Why Is NZXT CAM Not Reading CPU Temperature Correctly?

CAM isn’t wrong; however, it might not be accurate for the intended usage. Amongst the reasons are:

• Reads from package/hotspot sensor: This naturally runs hotter than the core average.
• No AMD calibration: Ryzen Master is directly tuned to AMD CPUs.
• Never sensor customizable: Which sensor it’s pulling from cannot be changed.
• Bugs or software delays: CAM sometimes lags or freezes, showing old readings.

Is NZXT CAM CPU Temperature Accurate?

NMZXT CAM is largely acceptable in terms of profiling a system, as it gives a pretty good idea of what is occurring at thermal levels in the CPU while performing everyday tasks or gaming. This above-average temperature reading arises as it would measure readings from package or hotspot sensors instead of averaging readings from cores.

Though great for casual users, CAM does not provide advanced settings such as per-core readings or selection of sensors, thus making it unreliable for extreme overclocking and diagnosing thermal issues. For more precision, it should always be used in conjunction with either Ryzen Master or HWiNFO64, as they provide more in-depth data and have AMD-calibrated readings.

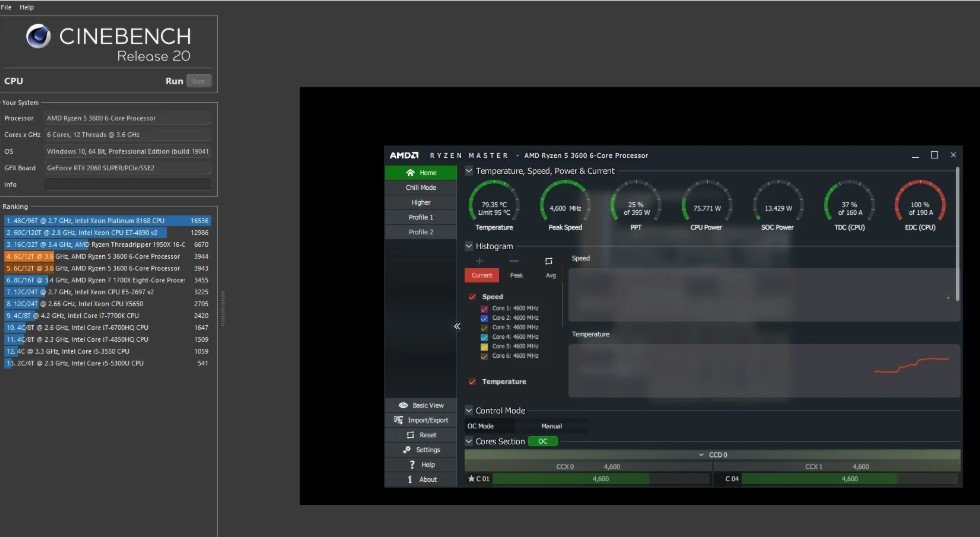

Is Ryzen Master CPU Temp Accurate?

Ryzen Master is the most accurate tool for monitoring the temperature of AMD CPUs. It has been developed by AMD and reads directly from the calibrated core sensors, thus giving very high precision and valid data on temperature, voltage, and clock speed.

Ryzen Master considers sensor offsets and gives the actual thermal behavior in real time, like designed by AMD, something that other apps don’t do. It’s great for overclocking, fine-tuning performance, and comparison with other tools like HWiNFO64 or NZXT CAM. If you are using a Ryzen processor, consider Ryzen Master your main reference utility for CPU temps.

How Do I Change the CPU Temp Limit on Ryzen Master?

You can set the temperature and performance limits for your CPU through its Precision Boost Overdrive (PBO) settings in Ryzen Master.

Step By Step Guide

1. Open Ryzen Master > Advanced View.
2. Move to the PBO section.
3. Modify the Thermal Throttle Limit (if any exists) for your CPU/motherboard combo.
4. Apply and test under load.

Note: Some motherboards lock this setting or handle it only in BIOS.

Is It Normal for My CPU to Have an Idle Temp of 60°C?

Yes, especially concerning contemporary Ryzen CPUs.

• High ambient temperatures
• Background tasks or some telemetry
• Aggressive boosting behavior
• Intensive use of monitoring software on higher sensors is some more.

If your full-load test does not exceed 85- 90 °C, you are well within the limits of safe operation.

Conclusion

To sum up, you will first need to understand that NZXT CAM and Ryzen Master show different CPU temps that reflect your CPU’s sensors. CAM’s higher readings tend to exploit the hotspot or package sensors, while AMD-calibrated core temperatures are shown by the Ryzen Master.

It is recommended that enthusiasts and gamers use a combination of Ryzen Master and HWiNFO64 to gain the most accurate thermal information. Not all monitoring tools are made equal, and being aware of what each one reports offers you the power to make educated guesses concerning the health and performance of your system.
